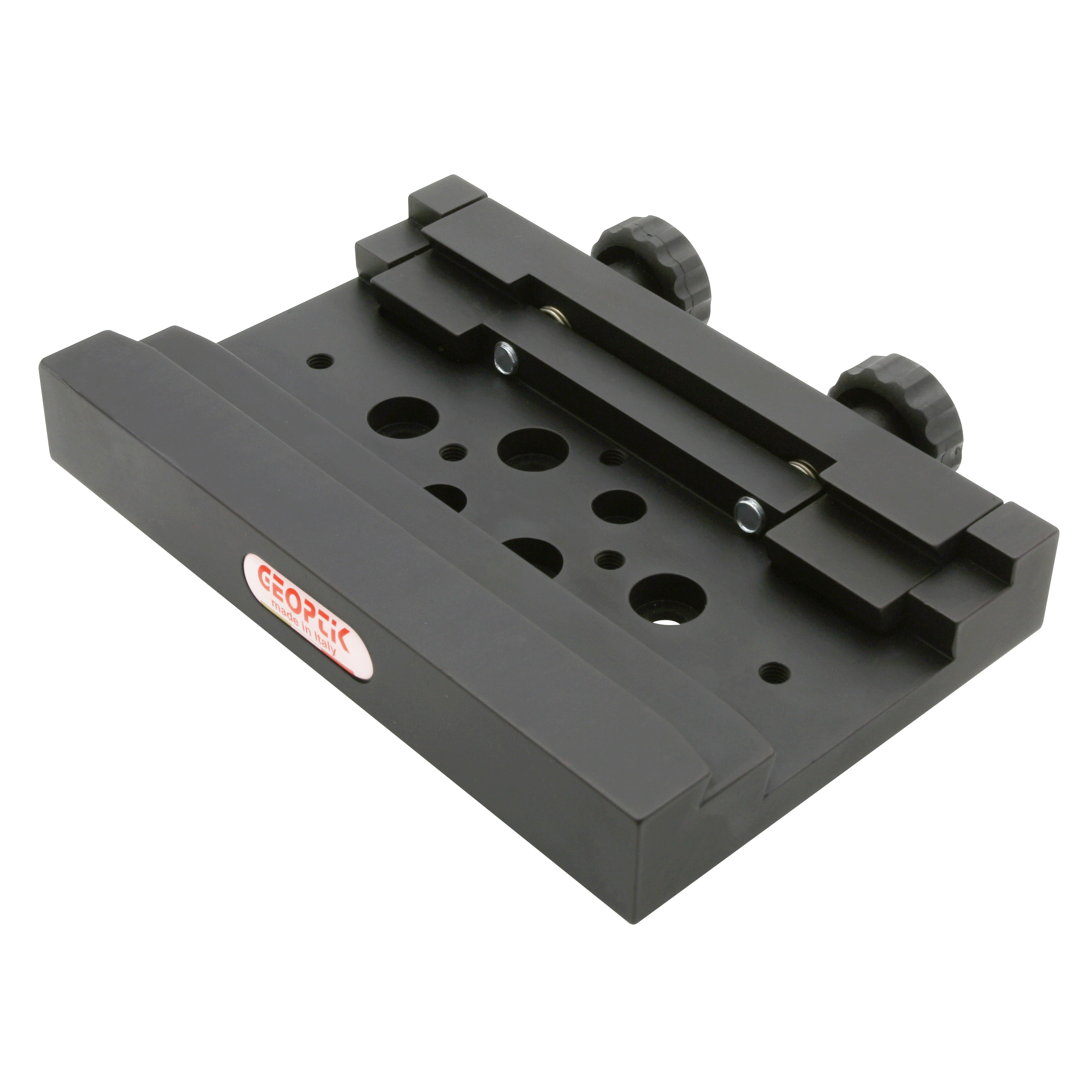

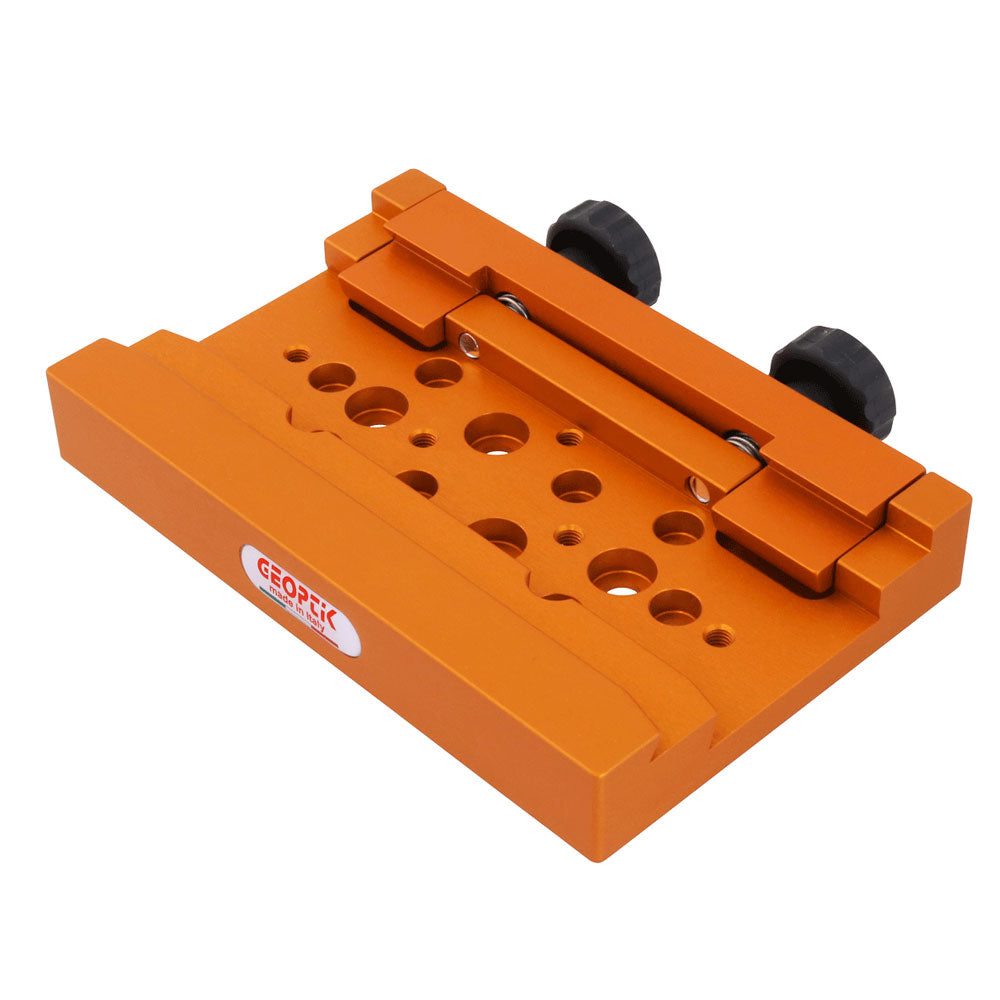

The Geoptik 170mm dual dovetail saddle is a "must have" to increase the payload and the rigidity of your setup. The saddle is CNC machined and the precision of its geometry guarantees a perfect match with most dovetail bars, a key factor for stability enhancement.
Note: Due to the many different dovetail bars on the market and different manufacturers' tolerances, we cannot guarantee compatibility with all bars. Please contact us first to double check.
This accessory can be installed on several mounts using one of the Geoptik flanges:
-
-
-
Made in Italy.
Video
Specifications
| Length | 170mm |
Width | 110mm |
Thickness | 25mm |
Weight | 826gr |
Material | Aluminium Anticorodal AW-6082-T6 |
SKU | 30A057 (Orange) ; 30A057Bk (Black) |
Alloy composition
Chemical Composition Aluminium Anticorodal AW-6082 - T6
| Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Pb | Bi | |
Min | 0.46% | 0.134% | 0.010% | 0.406% | 0.480% | 0.020% | 0.000% | 0.020% | 0.001% | 0.000% | 0.000% |
Max | 1.34% | 0.525% | 0.101% | 1.000% | 1.250% | 0.250% | 0.000% | 0.200% | 0.020% | 0.011% | 0.000% |
